OBDSTAR X300 Classic G3 Chery Tiggo 8 Pro Proximity Key Programming

This post will guide you on how to use OBDSTAR X300 Classic G3 to do Chery Tiggo 8 Pro proximity key programming.

The tools we need:

X300 Classic G3

M001 Main Cable

New Key

Procedure:

Connect OBDSTAR X300 Classic G3 to the car through M001 Main Cable

Select [IMMO], enter "Chery" to search, and select [CHERY/COWIN/JETOUR/EXEED]>>[Manual Select Model]>>[TIGGO]>>[TIGGO 8 PRO]>>[PROXIMITY]

Step 1. Read PinCode

Choose [Read PinCode]

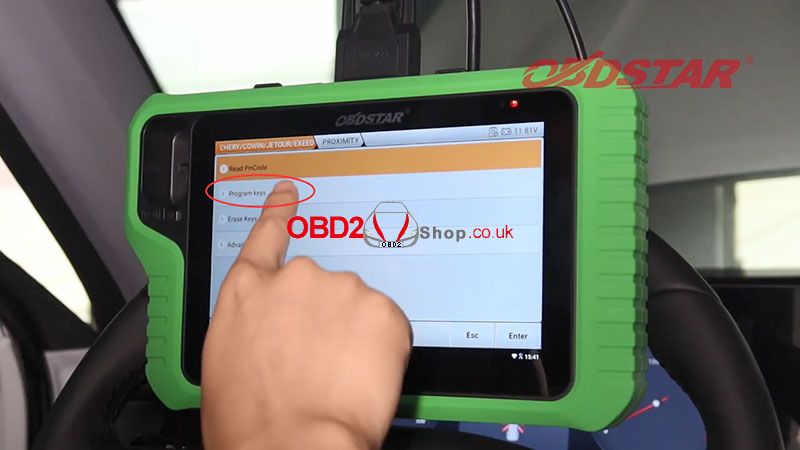

Step 2. Program keys

Choose [Program keys]>>[Program new keys]

Information:

If it is a blade key please insert it into the keyhole;

If it is a proximity key. Please put the key to be matched in the sensing area and take the other keys out of the vehicle

The sensing area may be located at:

1. Cup holder (some models require moving the cup holder away)

2. Below the cigarette lighter or USB port

3. Near the gear lever

Put the key matched in the sensing area, and input the PinCode just read.

End of function execution!

The proximity key programming is completed.
