OBDSTAR X300 PRO4 Adds 2019 Fiat Ducato via OBD Success

OBDSTAR X300 PRO4 can support to program of a new key for 2019 Fiat Ducato via OBD successfully. Generally speaking, it should work with FCA 12+8 Universal Adapter to program on 2018+ Fiat. But this time, I am successful to program without any adapters. The procedure includes reading pincode, program dealer key & learn key.

Following are the operation steps:

Connect X300 PRO4, P001 programmer with OBD.

Insert working key into ignition, new key into P001 programmer.

Read Pincode

IMMO >> FIAT >> FIAT V32.58 >> Manual select model >> Program keys >> Europe >> DUCATO >> 2012- >> BLADE >> MARELLI MB91465P+95640(ID46) >> TYPE 1

Please ensure the Internet connection is normal.

Models equipped with SGW ECU, please connect the OBDII-16 and FCA 12+8 at the same time to complete the operation!

Read PinCode >> Switch ignition on

Pincode was read out: 15944

Make Dealer Key

Make dealer key >> Enter >> Enter

Generating dealer key...

Operation success.

Learn Key

Click “Program keys”.

If you have the original key, please program it first. Otherwise, the original key(7936) will not be programmed.

Turn on the ignition.

Input 5-digit pincode: 15944

Turn off the ignition.

Turn on the ignition.

Turn off the ignition.

Insert the original key and switch ignition on.

Press “Enter” to go on next key.

Insert a new key and switch ignition on.

Press “Esc” to complete.

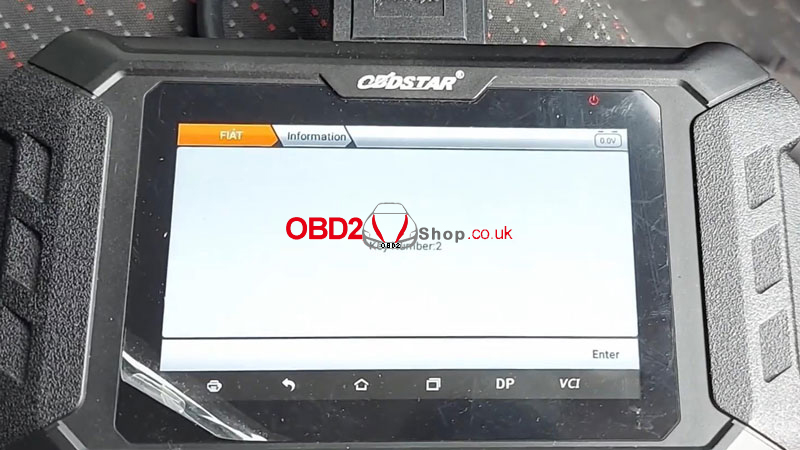

Key number: 2

Program finish.

Test 2 key, both can work well.

Done!

OBDSTAR Key Master 5 does a very good job on 2019 Fiat Ducato. Even if I didn’t try, I believe it can also do a good job for all key lost.

http://blog.obd2shop.co.uk/obdstar-x300-pro4-adds-2019-fiat-ducato-via-obd-success/

OBDSTAR P003 KIT: BOSCH ECU Data, CS, Pin code Reading

OBDSTAR P003 KIT is new in stock. Supports to work with IMMO series X300 DP PLUS (Key Master DP Plus), X300 DP (Key Master DP), X300 PRO4 (Key Master 5) for BOSCH ECU data reading, CS, pin code reading. Covers Audi, Citroen, DS, Mahindra, Peugeot, Skoda, Seat, Volkswagen, etc.

NOTE: P003 KIT requires upgrading tablets to the latest version. Please ensure tablets invalid time.

What’s in OBDSTAR P003 KIT?

1. P003 Adapter

2. ECU Bench Cables

OBDSTAR P003 Supported ECU List:

BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.

How to Connect P003 KIT?

Tools In Need

1. Diag cable OBD connector(male)

2. Connect P003 connector(female)

3. P003 adapter

4. Boot jumper(spring needle)

5. Boot jumper(welding)

6. ECU pin connector

7. ECU boot connector

8. 12V power

Bench Mode Method

1. Connect(1, 2, 3) Diag cable OBD connector(male), P003 connector(female) & P003 adapter as image;

2. Follow the wiring diagram to connect ECU pin connector with ECU;

3. Power on OBDSTART diagnostic tool with 12V.

Now you’re allowed to start reading.

Boot Mode Method

1. Connect(1, 2, 3) Diag cable OBD connector(male), P003 connector(female) & P003 adapter as image;

2. Follow the wiring diagram to connect ECU pin connector with ECU;

3. Connect(7 with 4 or 5) ECU boot connector with boot jumper(spring needle) or boot jumper(welding), then connect to ECU;

4. Power on OBDSTART diagnostic tool with 12V.

Now you’re allowed to start reading.
