OBDSTAR Added Toyota Lexus 8A 4A Add Key & AKL by OBD

OBDSTAR has released Toyota & Lexus IMMO upgrade V32.74, added new models 8A-A8, 8A-A9, 8A-AA, 4A all series add keys & all keys lost key programming by OBD. Works for OBDSTAR X300 DP PLUS, X300 PRO4. No adapter is required or disassembly supports keys from all manufacturers with free Pincode.

Program 2020 Lexus UX300E 8A-AA Key by OBD

Tools:

Key Master DP Plus

Main cable

Key SIM

CAN Direct Kit

Connect Toyota-27 with smart box, and connect CAN direct with OBD.

Operation:

Car IMMO >> Asia >> Lexus Toyota Scion >> Latest version >> Manual select system >> Proximity >> Type 9(8A-AA) >> Read IMMO data >> Operation in the car(CAN DIRECT KIT)

Please connect the diagnostic device, smart key ecu, and vehicle OBD through the CAN DIRECT KIT.

This function is available by connecting the server, please ensure the Internet connection is normal.

Save immo data file.

Make simulated card(key SIM) >> Enter

1. This function can make a simulated key when all the keys are lost(note: simulated key needs to be kept charged, and it needs to be made again after the power is off);

2. The simulated key can replace the original car key to add keys, erase keys and other operations;

3. Has the current vehicle immo data been read? If the immo data is not read, please execute the immo data reading function first.

Select the saved file >> Connect Key Sim simulator

Generate simulated card successfully.

Restore smart box cable.

Test the Key Sim close to start button. It can start engine successfully.

Now we can use it as an original key to add more keys.

www.obd2shop.co.uk

OBDSTAR MT501: Power on Dashboard, ABS, Gear Lever, A/C Panel

OBDSTAR MT501 is an automotive test platform by BENCH, that supports to power on the dashboard, ABS, gear lever, and A/C(air conditioning) panel without CANBUS communication. Covering Audi, BMW, Benz, Dodge, Ford, Jaguar, Lamborghini, Land Rover, Porsche, Rolls-Royce, Volkswagen, Volvo, etc.

How to use the OBDSTAR MT501 Test Platform?

Follow the operation below to learn:

- OBDSTAR MT501 power on Benz W221 dashboard by Bench

Accessories:

Benz W221 dashboard

MT501 Test Platform

Main cable

P004 adapter

P004 jumper

Test platform >> Agree >> Dashboard >> Latest version >> Brand >> Benz >> W221(Chassis) >> Dashboard Benz W221(Chassis)1036906653 >> Pinout

Connect all accessories together according to pinout diagram.

Turn on P004 adapter.

Start >> ON

- OBDSTAR MT501 power on Benz 205 dashboard by Bench

Test platform >> Agree >> Dashboard >> Latest version >> Brand >> Benz >> Dashboard Benz 205 A2059000842 >> Pinout

Follow the pinout diagram to connect all together.

Turn on P004 adapter.

Start >> ON

- OBDSTAR MT501 power on Benz W212 dashboard by Bench

Test platform >> Agree >> Dashboard >> Latest version >> Brand >> Benz >> W212(Chassis) >> Dashboard Benz W212(Chassis) A2C53185820 >> Pinout

Follow the pinout diagram to connect all together.

Turn on P004 adapter.

Start >> ON

- OBDSTAR MT501 power on Audi A4L dashboard by Bench

Accessories:

Audi A4L dashboard

MT501 test platform

Main cable

P004 adapter

P004 jumper

Test platform >> Agree >> Dashboard >> Latest version >> Brand >> Audi >> Dashboard Audi A4L(full LCD) 8WD920740A >> Pinout

Follow the pinout diagram to connect all together.

Turn on P004 adapter.

Start >> ON

- OBDSTAR MT501 power on Jaguar dashboard by Bench

Accessories:

Jaguar dashboard

MT501 test platform

Main cable

P004 adapter

P004 jumper

Test platform >> Agree >> Dashboard >> Latest version >> Brand >> Jaguar >> Dashboard Jaguar XJ2014 >> Pinout

Follow the pinout diagram to connect all together.

Turn on P004 adapter.

Start >> ON

www.obd2shop.co.uk

Obdstar X300 DP Plus Program 2019 Lexus RX300 Key by OBD

 Obdstar X300 DP Plus is supported to program 2018+ 8A-A9 Camry, Lexus, IZOA, CHR, LS add keys & all keys lost with free Pincode by OBD. Need to work with Key SIM, follow the steps below to learn.

Tools Required

Main Cable

Key Master DP Plus(X300 DP Plus)

Key SIM

Procedure

Full operation video:

1. Read & Save IMMO Data

Connect X300 DP Plus with the vehicle by OBD.

Car IMMO >> Asia >> Lexus Toyota Scion >> Latest version >> Manual select model >> LEXUS >> ASIA >> RX series >> Proximity >> 2018-(8A-A9) >> Read immo data >> With gateway 8A-A9 >> OBD

This function is available by connecting the server, please ensure the Internet connection is normal.

Save data file.

2. Make a Simulated Key

Go back to "Make simulated card".

This function is available by connecting the server, please ensure the Internet connection is normal.

This function can generate a simulated card with all keys lost.

Use this simulated card instead of the original car key to approach the start button and turn on the instrument, perform "add smart key" operation.

Make sure the simulated card is fully charged, otherwise the add smart key operation may fail.

Select immo data >> Enter >> Key sim simulator

Please connect key sim simulator.

Generating the A9-type simulated card, please wait for 1-2 minutes...

Generate simulated card successfully.

Move the simulated card close to the start button and try to light the meter. If you can light up the meter normally, use the simulated card instead of the original car key for the "Add smart key" operation.

Now you're allowed to go on adding keys. The operation is also applied to all keys lost situation.

Read also

OBSDSTAR Upgrade: Toyota/Lexus 2018+ 8A-AA Add Keys & AKL

Xhorse Key Tool MAX + Obdstar X300 DP Plus Add Chevy Captiva Key

Hello, guys! Today I'm going to show how to add a new key for 2006-2012 Chevrolet Captiva. The tools that will be used are Xhorse VVDI Key Tool MAX & OBDSTAR X300 DP PLUS. As for the new key, I would consider the Xhorse XELEX0EN Super Remote for a try.

It's very easy to finish in 2 steps. So, let's get started.

Step1. Generate Remote

Put the new key into VVDI Key Tool MAX slot,

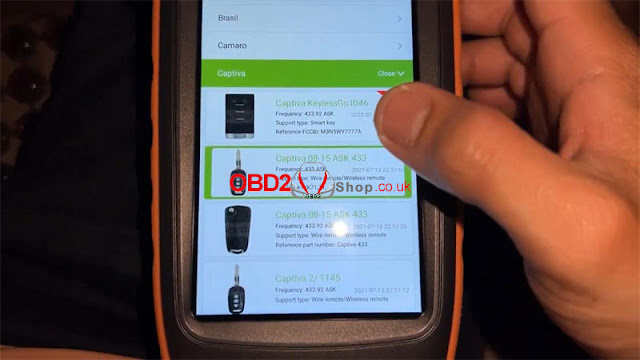

Vehicle remote >> Chevrolet >> Captive >> Captiva 08-15 ASK 433 >> Generate remote

Burn success.

Step2. Add Key

IMMO >> Americas >> GM >> Latest version >> Remote >> Select from vehicle >> Chevrolet >> Captiva >> 2006-2012 >> Add remote

Within 1 minute, at the same time hold each Lock & Unlock button of the remote until the vehicle sound.

Completed!

Very fast and amazing.

Test the new key, remote works OK.

Perfectly done.

www.obd2shop.co.uk

How to upgrade COROLLA 4A to TOYOTA-27

Why do we need to update COROLLA 4A to TOYOTA-27?

COROLLA 4A supports the programming of 4A proximity keys.

TOYOTA-27 supports programming of proximity key 4A, 8A-A9, 8A-AA ...

TOYOTA-27 is the upgraded version of COROLLA 4A.

Compared to COROLLA 4A, TOYOTA-27 has one more power cable.

Below I will guide you on how to upgrade COROLLA 4A cable to the TOYOTA-27 cable.

Of course you can also directly buy OBDSTAR CAN DIRECT KIT which includes CAN DIRECT cable and TOYOTA-27.

Step 1. Remove the heat shrink tube part as in the picture below from COROLLA 4A.

Step 2. Break the insulation of the red wiring (power cable) and find the matching DuPont line (female).

Step 3. Connect the DuPont line (female) to the red wiring point (power cable) as shown below.

Step 4. Insert the DuPont cable into the NO. 4 hole as in the picture below and protect it with electrical tape to avoid short circuits.

Done!

For more technical services, please follow http://blog.obd2shop.co.uk/

How to choose a suitable Motorcycle Scanner

Choosing a suitable motorcycle scanner generally needs to consider the range of models it covers and the functions it can support.

This article lists 5 Motorcycle Scanners of OBDSTAR for reference.

1. MS80 STD

① Specifications

② Functions and Coverage

MOTORCYCLE/SNOWMOBILE/ATV/UTV DIAG

Asia: AEON, BAJAJ, BENELLI(DSK), DAELIMMOTOR, HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TGB, TVS, YAMAHA

Europe: ADIVA, AJP, APRILIA, BENELLI, BETAMOTOR, BMW, BRIXTON MOTORCYCLE, BROSE, BROUGH SUPERIOR, DERBI, DUCATI, FANTIC MOTOR, FB MONDIAL, GASGAS, GG TECHNIK, GILERA, GOES, HM, HUSABERG, HUSQVARNA, ITALJET, KSR MOTO, KTM, KVN MOTORS, LAMBRETTA, MACBOR, MALAGUTI, MASH, MBK, MGK HM, MH, MINSK, MOTO GUZZI, MOTO MORINI, MV AGUSTA, ORCAL, OVERBIKES, PEUGEOT, PIAGGIO, QOODER, QUADIX, QUADRO, RBS, RIEJU, ROYAL ALLOY, SHERCO, STELS, SWM, TRIUMPH, VERVE MOTO, VESPA, WOTTAN

Americas: ACELLERA, ARCTIC CAT, BRP, BUELL, COLEMAN, CSC MOTORCYCLES, DAFRA, HARLEYDAVIDSON, INDIAN, KELLER, POLARIS, VICTORY

China: ARIIC, BAODIAO, BENDA, CFMOTO, CHINA ABS, CHINA ENGINE, CQZONGSHEN, CYCLONE, DAYANG, DAYUN, DONGFANG, FYM, GAOKIN, GEELY MOTOR, GENERIC, GEON, GUOWEI, HAOJIANG, HAOJUE, HISUN, JINCHENG, JNQQSUZUKI, KEEWAY, KOVE, LIFAN, LONCIN, LONGJIA, QJBENELLI, QJMOTOR, REGAL RAPTOR, RIYA, SHINERAY, SINNIS, TARO, TIANMA, VOGE, WYHONDA, XDZHONDA, ZONTES

IMMO

Europe: APRILIA, BMW, DERBI, DUCATI, GILERA, MOTO GUZZI, PEUGEOT, PIAGGIO, TRIUMPH, VESPA

Americas: BRP, HARLEY-DAVIDSON, INDIAN, POLARIS

Asia: HONDA KAWASAKI SUZUKI YAMAHA

PERSONAL WATERCRAFT(PWC) DIAG

HONDA, KAWASAKI, SEA-DOO(BRP), YAMAHA

ODOMETER RECALIBRATION

Europe: APRILIA, BENELLI, BMW, CAGIVA, DUCATI, GENERIC, KTM, MV AGUSTA, PEUGEOT, PIAGGIO, TRIUMPH

Americas: BUELL, HARLEY-DAVIDSON

Asia: HONDA, KAWASAKI, SUZUKI, YAMAHA

China: HAOJUE, KYMCO

ECU FLASHER

APRILIA, CFMOTO, DERBI, GILERA, MOTO GUZZI, PEUGEOT, PIAGGIO, QJBENELLI, VESPA

TUNING

HONDA

2. MS80 Basic

① Specifications

② Functions and Coverage

MOTORCYCLE/SNOWMOBILE/ATV/UTV DIAG

Asia: AEON, BAJAJ, BENELLI(DSK), DAELIMMOTOR, HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TGB, TVS, YAMAHA

Europe: ADIVA, AJP, APRILIA, BENELLI, BETAMOTOR, BMW, BRIXTON MOTORCYCLES, BROSE, BROUGH SUPERIOR, DERBI, DUCATI, FANTIC MOTOR, FBMONDIAL, GASGAS, GG TECHNIK, GILERA, GOES, HM, HUSABERG, HUSQVARNA, ITALJET, KSR MOTO, KTM, KVN MOTORS, LAMBRETTA, MACBOR, MALAGUTI, MASH, MBK, MGK HM, MH, MINSK, MOTO GUZZI, MOTO MORINI, MV AGUSTA, ORCAL, OVERBIKES, PEUGEOT, PIAGGIO, QOODER, QUADIX, QUADRO, RBS, RIEJU, ROYAL ALLOY, SHERCO, STELS, SWM, TRIUMPH, VERVEMOTO, VESPA, WOTTAN

Americas: ACELLERA, ARCTICAT, BRP, BUELL, COLEMAN, CSC MOTORCYCLES, DAFRA, HARLEY-DAVIDSON, INDIAN, KELLER, POLARIS, VICTORY

China: ARIIC, BAODIAO, BENDA, CFMOTO, CHINA ABS, CHINA ENGINE, CQZONGSHEN, CYCLONE, DAYANG, DAYUN, DONGFANG, FYM, GAOKIN, GEELY MOTOR, GENERIC, GEON, GUOWEI, HAOJIANG, HAOJUE, HISUN, JINCHENG, JNQQSUZUKI, KEEWAY, KOVE, LIFAN, LONCIN, LONGJIA, QJBENELLI, QJMOTOR, REGAL RAPTOR, RIYA, SHINERAY, SINNIS, TARO, TIANMA, VOGE, WYHONDA, XDZHONDA, ZONTES

ODOMETER RECALIBRATION

Europe: APRILIA, BENELLI, BMW, CAGIVA, DUCATI, GENERIC, KTM, MV AGUSTA, PEUGEOT, PIAGGIO, TRIUMPH

Americas: BUELL, HARLEY-DAVIDSON

Asia: HONDA, KAWASAKI, SUZUKI, YAMAHA

China: HAOJUE, KYMCO

3. MS70

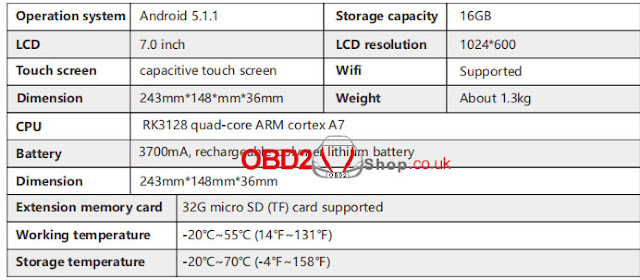

① Specifications

② Functions and Coverage

MOTORCYCLE/SNOWMOBILE/ATV/UTV DIAG

Asia: AEON, BAJAJ, HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TVS, YAMAHA

Europe: APRILIA, BENELLI, BMW, DERBI, DUCATI, GILERA, HM, HUSQVARNA, KTM, MOTO GUZZI, PEUGEOT, PIAGGIO, RBS, RIEJU, ROYAL ALLOY, TRIUMPH, VESPA

Americas: ACELLERA, BRP, HARLEY-DAVIDSON, INDIAN

China: CFMOTO, CHINA ABS, CHINA ENGINE, HAOJUE, QJBENELLI, SHINERAY, ZONTES

4. MS50 STD

① Specifications

② Functions and Coverage

MOTORCYCLE/SNOWMOBILE/ATV/UTV DIAG

Asia: AEON, BAJAJ, BENELLI(DSK), HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO,

PGO, ROYAL ENFIELD, SUZUKI, SYM, TVS, YAMAHA

Europe: APRILIA, BENELLI, HM, HUSQVARNA, KTM, PIAGGIO, ROYAL ALLOY, VESPA

Americas: ACELLERA

China: CHINA ABS, CHINA ENGINE, CFMOTO, HAOJUE, QJBENELLI, SHINERAY, ZONTES

ODOMETER RECALIBRATION

Europe: APRILIA, BENELLI, BMW, CAGIVA, DUCATI, GENERIC, KTM, MV AGUSTA, PEUGEOT, PIAGGIO, TRIUMPH

Americas: BUELL, HARLEY-DAVIDSON

Asia: ACELLERA

China: HAOJUE, KYMCO

TUNING

HONDA

5. MS50 Basic

① Specifications

② Functions and Coverage

MOTORCYCLE/SNOWMOBILE/ATV/UTV DIAG

Asia: AEON, BAJAJ, HARTFORD, HERO, HONDA, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TVS, YAMAHA

Europe: APRILIA, BENELLI, PIAGGIO, ROYAL ALLOY, VESPA

China: CHINA ABS, CHINA ENGINE

ODOMETER RECALIBRATION

Europe: APRILIA, BENELLI, BMW, CAGIVA, DUCATI, GENERIC, KTM, MV AGUSTA, PEUGEOT, PIAGGIO, TRIUMPH

Americas: BUELL, HARLEY-DAVIDSON

Asia: HONDA, KAWASAKI, SUZUKI, YAMAHA

China: HAOJUE, KYMCO

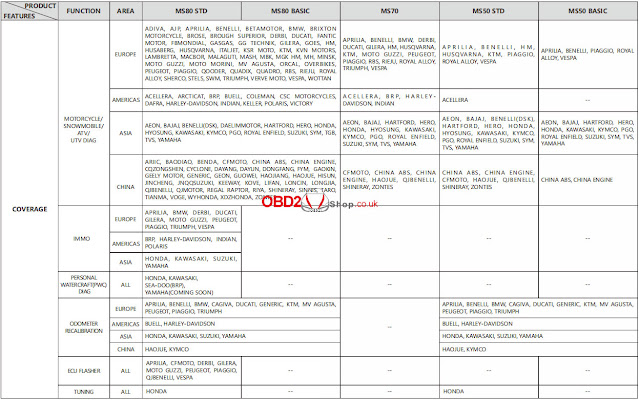

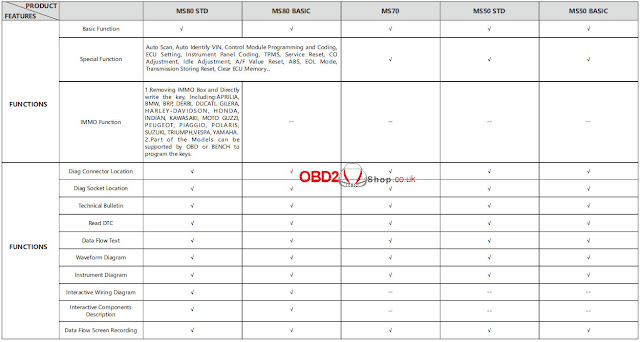

The difference between them:

In conclusion:

If you want to perform more functions, especially IMMO functions, MS80 STD is your best choice; If you just want to perform some basic functions and odometer recalibration, you can choose MS50 STD or MS50 basic.
